How Laser Welding Works: A Beginner’s Guide?

Laser welding represents a revolutionary manufacturing process that harnesses concentrated light energy to join materials with unprecedented precision and speed. A laser welding machine operates by focusing an intense beam of coherent light onto specific joining points, creating localized heat that melts and fuses materials together. This advanced technology has transformed modern manufacturing across automotive, aerospace, electronics, and heavy industry sectors, offering superior weld quality, minimal heat-affected zones, and exceptional repeatability compared to traditional welding methods.

Understanding Laser Welding Technology

Through a complex method of regulated energy delivery, focused laser beams are used in laser welding to combine materials with remarkable accuracy and speed. In order to build strong metallurgical connections, materials are melted at their sites of contact by a high-intensity beam of coherent light that produces localized heating.

How Laser Welding Systems Generate Energy

Modern laser welding frameworks utilize three primary sorts of lasers, each suited to distinctive applications. Fiber lasers, with wavelengths around 1070 nanometers, are productive for metals like steel and aluminum, advertising over 25% effectiveness, making them perfect for high-volume generation. CO₂ lasers, with 10.6-micrometer wavelengths, are idealized for profound infiltration in thick materials and non-metallics. Precious stone lasers, like Nd:YAG, give 1064-nanometer wavelengths, advertising fabulous pillar quality for accuracy work that requires negligible warm input.

Advantages Over Traditional Welding Methods

Compared to ordinary circular segment, TIG, and MIG welding, laser welding has a number of benefits. By diminishing warm twisting and keeping up fabric characteristics, the heat-affected zone is altogether smaller (0.1-0.5 mm vs. 2-5 mm). In certain circumstances, welding rates can reach 1000 inches per miniature, which is 10–20 times speedier. Since it is non-contact, cathode wear and defilement are dispensed with, and getting to difficult-to-reach places is made conceivable. Exact programming for dependable, repeatable results over thousands of cycles is made conceivable by robotization capabilities.

Technological Advancements and Industry 4.0 Integration

Recent developments in laser welding have moved forward pillar quality, versatile control, and observing advances. Real-time crease following employs sensors to keep up center, whereas versatile optics alter for fabric and joint fit-up variations.

Integration with Industry 4.0 permits information collection, prescient upkeep, and quality affirmation through persistent checking. Machine learning optimizes welding parameters and diminishes absconds, improving by and large and handling unwavering quality.



Types of Laser Welding Machines and Their Applications

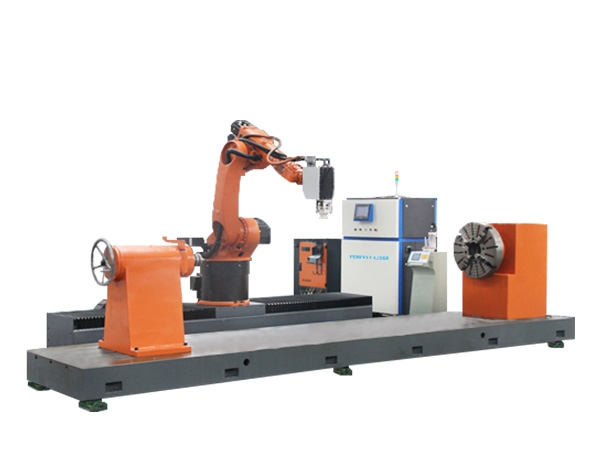

From fully automated robotic systems to small handheld devices, various laser welding equipment serve a variety of industrial purposes. Procurement managers may choose the best options for certain production needs and operating conditions by being aware of the differences between different machine setups.

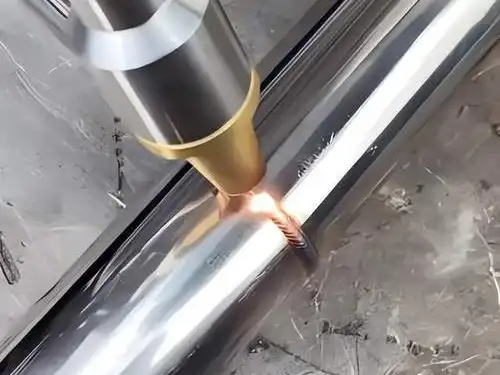

Handheld Laser Welding Systems

Because of their great adaptability and simplicity of use, handheld laser welders are ideal for mobile applications, small-batch manufacturing, and maintenance. Because of their ergonomic form and built-in cooling, these small systems usually provide 1000–2000 watts of power while being portable.

The portable variants from Perfect Laser include simple LCD controls that allow for rapid parameter changes with no training. They are perfect for jewelry work, maintenance duties, and prototype development because of their lightweight construction and flexible fiber supply, which enable effective welding in confined locations or on big, stationary workpieces.

Continuous Fiber Laser Welding Machinery

With power outputs ranging from 500 to over 10,000 watts for deep penetration welding, continuous wave fiber laser systems are crucial for high-volume production. For outstanding beam quality and energy economy, these systems employ continuous fiber lasers, making them perfect for heavy industrial, automotive, and aerospace applications.

Consistent penetration is ensured by their continuous operation, which permits welding of thick materials up to several inches deep. In order to minimize flaws like porosity or cracking in delicate materials, advanced beam shaping methods maximize heat dispersion.

Specialized Application Systems

Channel letter laser welding equipment minimize visual distortion by precisely controlling the joining of thin sheet metal in architectural metalwork and signs. By treating many components at once, double-path welders increase productivity and shorten cycle times in commercial manufacturing.

With minuscule beam widths and millisecond pulse lengths to minimize heat damage, spot jewelry laser welders provide incredibly fine energy management for delicate precious metal work. Accurate placement on complex patterns is ensured by specialized fittings and magnification lenses.

The sturdy design and precise control of Perfect Laser's welders for the mold and kitchenware industries enable the creation and repair of intricate tools while preserving the dimensional accuracy necessary for injection molding and food processing.

Key Benefits and Practical Considerations of Laser Welding

Laser welding offers substantial benefits that align directly with B2B procurement goals, delivering enhanced productivity, superior quality outcomes, and cost efficiency through optimized material utilization and reduced secondary operations.

Enhanced Productivity and Quality Advantages

High speed and accuracy are used in laser welding systems to produce considerable increases in production. For pristine, low-visibility connections, welding rates can surpass 500 inches per minute while maintaining ultra-narrow welds of around 0.1 mm. Particularly crucial for heat-sensitive alloys, the focused heat input produces very tiny heat-affected zones that preserve material qualities and frequently eliminate the requirement for post-weld heat treatment. Smooth weld surfaces reduce or eliminate subsequent finishing procedures, and filler materials are frequently superfluous, saving money and minimizing contamination.

Safety Protocols and Compliance Considerations

For laser welding operations to be safe and compliant, thorough safety procedures are necessary. Accidental exposure can be avoided with the use of wavelength-specific protective eyewear, interlocked access, and appropriate enclosures. Fumes must be captured by efficient ventilation systems, particularly when welding coated or alloyed materials. ANSI Z136 compliance is supported by routine laser power and safety interlock calibration. While enhancing process uniformity and overall weld quality, operator training in laser safety, proper operation, and emergency procedures further lowers hazards.

Maintenance and Performance Optimization

Preventive maintenance is key to maintaining performance and extending equipment lifespan. Regular cleaning of optical components preserves beam quality and prevents power loss. Proper cooling system upkeep, including monitoring coolant quality and temperature, ensures stable operation and protects laser components. Routine calibration of positioning and power systems maintains accuracy and repeatability. Keeping detailed maintenance records supports predictive servicing, helping reduce unexpected downtime and production interruptions.

How to Choose and Procure the Best Laser Welding Machine

Selecting the ideal laser welding machine requires careful evaluation of technical specifications, operational requirements, and long-term cost considerations to ensure optimal return on investment and sustained competitive advantage.

Technical Specification Evaluation

When selecting laser welding equipment, power selection is crucial since the required output depends on the kind of material, thickness, and speed. Because of its thermal characteristics, copper and aluminum require more power than thin stainless steel, which typically requires 200–600 watts. Because improved focus allows for more accuracy and deeper penetration, beam quality is also important. Furthermore, precision industries, where sophisticated systems provide extremely consistent outputs through precise motion control, depend heavily on positioning accuracy and repeatability.

Design Configuration Selection

Generation volume, portion complexity, and adaptability prerequisites all play a part in the choice between handheld and fixed-position frameworks. In spite of the fact that they have a smaller yield, handheld gadgets are flexible for an assortment of workpieces and repairs. Computerized settled frameworks work well in high-volume situations, giving solid quality and overseeing complicated weld courses. By consolidating numerous assignments into a single, little stage, Culminate Laser's 3-in-1 welding, cutting, and cleaning frameworks increment flexibility while bringing down costs and space prerequisites.

Supplier Evaluation and Total Cost Analysis

Long-term satisfaction and efficient operations depend heavily on the dependability and support of suppliers. Reputable producers provide more confidence in the availability of parts, technical support, and software upgrades that maintain equipment's competitiveness.

Training, maintenance, consumables, and productivity during ramp-up are all included in the total cost of ownership, which extends beyond the purchase price. Reducing unforeseen expenses and downtime is facilitated by robust warranties and prompt assistance.

Flexible lease or financing alternatives increase cash flow and provide access to cutting-edge technologies. Before making a purchase, purchasers can assess performance through equipment demonstrations utilizing actual production parts.

Perfect Laser: Advanced Laser Welding Solutions

Perfect Laser stands as a trusted expert in delivering advanced laser welding technologies tailored to diverse industrial needs across automotive, electronics, aerospace, and heavy manufacturing sectors. Our comprehensive product portfolio addresses specific application requirements through innovative engineering and proven reliability.

Comprehensive Product Portfolio

For a variety of industrial welding requirements, Perfect Laser provides a broad selection of customized solutions. Our double-path models increase efficiency with simultaneous processing, and our channel letter welders deliver accurate results for architectural metalwork and signs.

With tiny beam control and specialized fixtures for complex workpieces, spot jewelry welders provide very accurate control for delicate precious metal applications. For high-volume manufacturing, continuous  laser welding machines provide reliable performance that guarantees consistent outcomes over extended periods of time.

In order to enable both production welding and repairs while preserving crucial dimensional accuracy for injection molding and food processing applications, our welders for the mold and kitchenware sectors combine durability and precision.

Advanced Technology Features

Continuous fiber laser sources provide excellent beam quality and energy efficiency in Perfect Laser systems. LCD control panels are easy to use, requiring little training and enabling accurate parameter modifications for a range of uses.

Handheld welding guns can handle huge workpieces that cannot be put on fixed tables and reach confined locations thanks to their mobile nature. While providing excellent precision and quick welding rates to increase production, compact designs conserve space.

Our non-polluting process reduces its negative effects on the environment and creates flawless welds that frequently do not require further polishing, increasing output and cutting expenses.

Comprehensive Support Services

Beyond only providing equipment, Perfect Laser is dedicated to providing thorough after-sales services and operator training. Our round-the-clock online assistance guarantees prompt problem solving, reducing production interruptions.

Operational, maintenance, and safety procedures are all included in training, which enables operators to perform at their best in secure settings. Our solutions may be tailored to individual application requirements.

Our capacity to serve worldwide operations while upholding high service quality standards is demonstrated by our global footprint, which includes installations in nations including Germany, Japan, Italy, Russia, Brazil, and India.

Conclusion

Laser welding technology is reshaping modern manufacturing by delivering high precision, fast processing speeds, and consistently high-quality results across a wide range of applications, making the laser welder machine an essential solution for many industries. With minimal heat impact, strong automation compatibility, and improved productivity, laser welding has become a valuable tool for manufacturers aiming to stay competitive.

Perfect Laser offers a complete lineup of welding solutions, from portable handheld units to advanced industrial systems, designed to meet varied production needs. Backed by reliable performance, technical expertise, and global support, these solutions help ensure smooth integration and long-term operational success.

Frequently Asked Questions

1. What materials can be welded using laser welding machines?

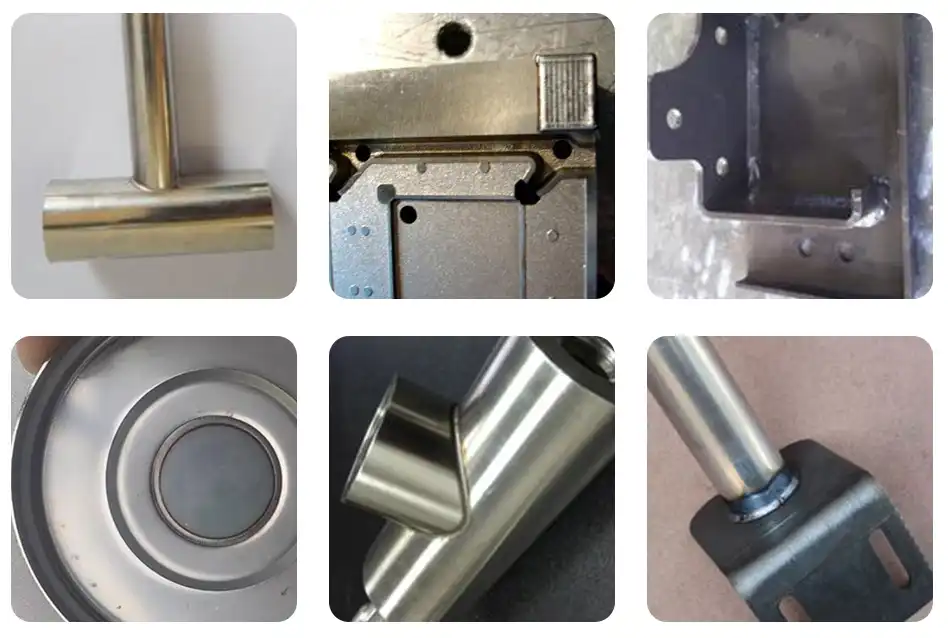

Laser welding frameworks can connect a wide assortment of materials, including stainless steel, carbon steel, aluminum combinations, titanium, copper, and valuable metals utilized in gems. They moreover handle challenging divergent metal combinations, such as steel-to-aluminum joints commonly found in car lightweighting.

Material thickness capabilities extend from ultra-thin foils beneath 0.1 mm to overwhelming plates over 25 mm, depending on the laser control and optics arrangement. A few specialized frameworks indeed permit welding of certain plastics and composite materials with exact vitality control.

2. How does laser welding compare to traditional methods in terms of cost?

Although introductory costs for laser welding hardware may be higher than conventional frameworks, it offers a lower add-up to the cost of proprietorship due to higher efficiency, less fabric squander, and fewer auxiliary operations. Laser welding speeds are 5-10 times quicker, essentially bringing down labor costs.

Savings also come from the disposal of consumables like cathodes and filler materials, along with decreased post-weld wrapping up. Fiber laser frameworks, in specific, move forward vitality proficiency, cutting working costs by 50-70% compared to more seasoned technologies.

3. What safety considerations are important for laser welding operations?

Effective laser security depends on strict conventions such as encased work regions, interlocked access to frameworks, and defensive gear coordinated to the laser wavelength. Administrators ought to be prepared in security standards and crisis reaction and rectify gear use.

Proper ventilation is required to evacuate handle emanations, and security interlocks ought to be checked frequently to keep up compliance. Clear caution signs and controlled access help diminish the chance of inadvertent exposure.

Transform Your Manufacturing with Perfect Laser Welding Solutions

Ready to revolutionize your welding operations with cutting-edge laser technology? Perfect Laser offers comprehensive consultation services to help you select the optimal laser welding machine for your specific manufacturing requirements. Our experienced team provides detailed application analysis, equipment demonstrations, and customized proposals that maximize your return on investment. Contact our specialists today at [email protected] to schedule your personalized consultation and discover how our advanced laser welding machine manufacturer solutions can enhance your production capabilities, reduce operational costs, and improve product quality across your manufacturing operations.

References

1. Katayama, S. "Handbook of Laser Welding Technologies." Woodhead Publishing Series in Electronic and Optical Materials, 2013.

2. Duley, W.W. "Laser Welding: Theory and Practice." Industrial Applications of Lasers, Second Edition, Academic Press, 2016.

3. Dilthey, U. and Brandenburg, A. "Laser Beam Welding: Process Analysis and Applications." DVS Media GmbH, 2018.

4. Mazumder, J. "Laser-Assisted Manufacturing: Fundamentals and Industrial Applications." Materials Processing Technology Journal, 2019.

5. Ready, J.F. and Farson, D.F. "LIA Handbook of Laser Materials Processing." Laser Institute of America, 2020.

6. Ion, J.C. "Laser Processing of Engineering Materials: Principles, Procedure and Industrial Application." Butterworth-Heinemann, 2021.
