Key Technologies Inside a 3D Crystal Laser Engraving Machine

The 3d crystal laser engraving machine represents a revolutionary breakthrough in precision manufacturing technology, utilizing UV laser beams to create intricate three-dimensional patterns within transparent materials. These sophisticated systems combine advanced optical engineering, precision motion control, and intelligent software to produce stunning crystal engravings that captivate viewers while meeting demanding commercial requirements. Understanding the core technologies behind these machines reveals why they have become essential tools for businesses ranging from souvenir shops to high-end photography studios.

Understanding the Core Technology Behind 3D Crystal Laser Engraving

The foundation of crystal engraving technology rests on the precise interaction between laser energy and transparent materials. Modern 3D crystal laser systems primarily employ three distinct laser types, each offering unique advantages for specific applications.

UV Laser Technology and Material Interaction

UV lasers operating at 355 nm wavelength dominate the crystal engraving market due to their exceptional precision and minimal heat generation. When the UV laser beam focuses inside crystal material, it creates controlled micro-fractures through nonlinear light excitation effects. This process generates tiny programmed micro-explosive points that construct three-dimensional patterns within the material lattice without affecting the external surface.

The interaction mechanism differs significantly from traditional surface marking. Rather than removing material from the surface, the laser energy creates internal stress points that form visible patterns when light passes through the crystal. This technique enables artists and manufacturers to create floating images that appear suspended within the crystal structure.

Laser Source Comparison and Applications

Different laser types serve varying purposes in crystal engraving applications:

• UV Solid-State Lasers: Provide wavelengths of 355 nm with exceptional beam quality and long service life, making them ideal for high-precision crystal work
• Green Laser Systems: Operating at 532 nm, these systems offer excellent optical clarity through crystal and glass materials
• Fiber Lasers: While primarily used for surface marking on metals and plastics, they complement UV systems in multi-functional engraving setups

The choice between laser types depends on material properties, desired engraving depth, and production requirements. UV systems excel in crystal applications, while green lasers offer versatility across multiple transparent materials.

Advanced Software Integration and Workflow Optimization

Modern 3D crystal laser engraving machines integrate sophisticated software platforms that seamlessly convert digital designs into precise laser instructions. These systems support multiple file formats, including DXF, PLT, CNC, STEP, and IGES, enabling compatibility with mainstream CAD and design software.

The software manages critical parameters, including laser power modulation, scanning speed, focal depth adjustment, and pattern optimization. Advanced algorithms calculate optimal engraving paths to minimize processing time while maintaining exceptional quality standards. Real-time preview capabilities allow operators to visualize results before initiating the engraving process.

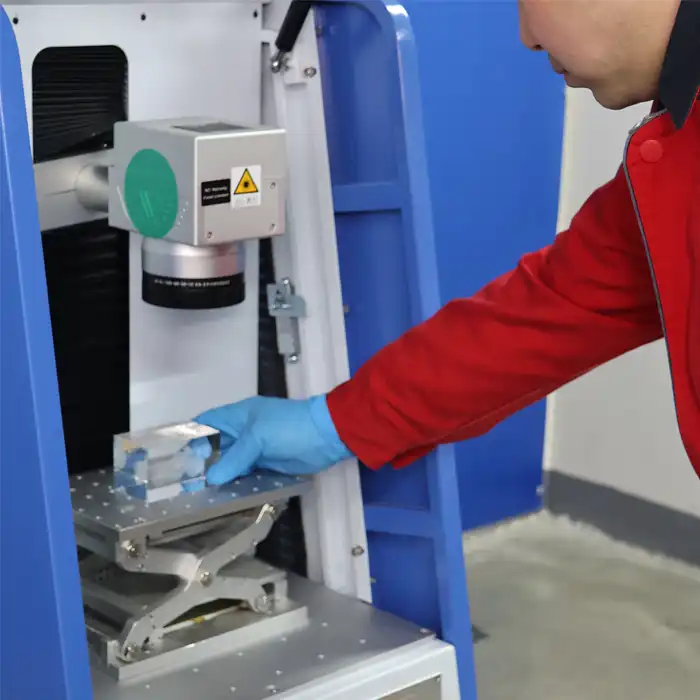

Key Components and System Architecture of a 3D Crystal Laser Engraving Machine

Understanding the structural components of these advanced frameworks uncovers how person components work together to accomplish momentous accuracy and reliability.

Optical Systems and Beam Delivery Architecture

The optical pathway speaks to the heart of any gem etching framework. High-quality field focal points center the laser bar to exact spot sizes, ordinarily accomplishing sub-micron-evel exactness. The 50x50 mm arranged field focal point gives great occurrence light spot quality, in spite of the fact that elective groups suit particular client requirements.

Beam stabilization innovation guarantees reliable control conveyance all through expanded operation periods. Progressed galvanometer frameworks control pillar situating with uncommon accuracy, empowering the creation of complex three-dimensional designs inside gem structures. The optical plan minimizes distortions and keeps up central precision over the whole working area.

Motion Control Systems and Scanning Technology

Galvanometer scanners shape the spine of high-speed gem etching frameworks. Cutting-edge galvo frameworks accomplish checking speeds up to 150,000 focuses per miniature whereas keeping up remarkable situating precision. This quick checking capability empowers effective mass generation whereas protecting complicated detail quality.

The filtering head plan consolidates energetic centering capabilities that naturally alter central profundity all through the etching preparation. This innovation guarantees uniform etching quality over shifting gem thicknesses and complex three-dimensional surfaces. Manual central length alteration through lifting handles gives extra adaptability for specialized applications.

Cooling and Power Management Technologies

Effective warm administration guarantees reliable execution amid amplified operation periods. Advanced cooling frameworks keep up ideal working temperatures for both laser sources and optical components. The coordinates plan reasoning emphasizes maintenance-free operation whereas giving vigorous execution in requesting mechanical environments.

Power administration frameworks direct laser yield with uncommon soundness, guaranteeing reliable etching comes about over generation runs. Crisis halt components and security interlocks ensure both administrators and hardware amid ordinary operation and crisis situations.

Maintenance and Operational Best Practices for Maximizing Machine Performance

Proper maintenance protocols directly impact system longevity, engraving quality, and operational reliability. Understanding these requirements helps businesses maximize their equipment investment while ensuring consistent production output.

Routine Maintenance and Optical Care

The maintenance-free optical system design simplifies routine care requirements while maintaining exceptional performance standards. Regular cleaning of optical components prevents contamination that could affect beam quality or engraving precision. Alignment calibration procedures ensure optimal beam delivery and focus accuracy.

Modular design principles facilitate straightforward maintenance procedures without requiring extensive technical expertise. Component accessibility enables quick inspection and cleaning without disrupting production schedules. Preventive maintenance schedules help identify potential issues before they impact production capacity.

Safety Standards and Operational Protocols

Laser safety compliance remains paramount in crystal engraving operations. Proper training ensures operators understand safety protocols specific to UV laser systems. Protective equipment requirements include appropriate eyewear and ventilation systems to maintain safe working environments.

Operational protocols emphasize proper material handling, workspace preparation, and quality control procedures. Understanding material properties helps operators select appropriate engraving parameters while avoiding potential safety hazards or equipment damage.

Troubleshooting and Performance Optimization

Common operational issues typically involve alignment, power fluctuations, or material handling challenges. Systematic troubleshooting approaches help identify root causes while minimizing production downtime. Understanding system indicators and diagnostic tools enables rapid problem resolution.

Performance optimization techniques include parameter adjustment for different crystal types, scanning pattern optimization for complex designs, and workflow improvements that enhance production efficiency without compromising quality standards.

Comparing 3D Crystal Laser Engraving Technology with Alternative Methods

Evaluating precious stone etching innovation against conventional options uncovers critical focal points in accuracy, proficiency, and inventive possibilities.

Precision and Quality Comparison

Traditional sandblasting and mechanical etching strategies cannot accomplish the inner exactness conceivable with laser innovation. Sandblasting makes surface surfaces but needs the capacity to make inside three-dimensional designs. Mechanical etching requires physical contact that dangers fabric harm and limits plan complexity.

Laser etching conveys submicron exactness with, for all intents and purposes boundless plan complexity. The non-contact handle kills device wear, whereas empowering complex designs incomprehensible with customary strategies. Quality consistency over generation runs surpasses conventional fabricating tolerances.

Desktop Versus Industrial-Grade Systems

Equipment determination depends on generation volume, space prerequisites, and application requests. Desktop frameworks weighing around 47 kilograms give compact arrangements for little businesses and specialized applications. These frameworks offer proficient capabilities whereas keeping up transportability and ease of installation.

Industrial-grade frameworks suit higher generation volumes with upgraded robotization capabilities. Bigger working ranges and expanded laser control empower the handling of greater precious stone pieces whereas keeping up uncommon quality benchmarks. Multi-station setups back nonstop generation workflows.

Environmental Impact and Sustainability

Laser etching innovation bolsters maintainable fabricating hones through diminished vitality utilization and negligible squander era. The non-contact preparation disposes of consumable tooling whereas lessening fabric squander. UV laser frameworks work with tall electrical productivity compared to conventional fabricating methods.

Environmental benefits include the elimination of chemical engraving processes, reduced material waste, and lower overall energy consumption per finished piece. These advantages are especially appealing to environmentally conscious businesses seeking sustainable production options, such as those utilizing the subsurface laser engraving machine.

Procurement Insights: How to Select and Purchase the Right 3D Crystal Laser Engraving Machine

Strategic hardware choice requires cautious assessment of specialized determinations, trade prerequisites, and long-term operational considerations.

Technical Specification Evaluation

Critical assessment criteria incorporate etching determination, handling speed, program compatibility, and framework unwavering quality. Determination capabilities straightforwardly affect the quality of fine points of interest and complex designs. Handling speed decides generation capacity and operational efficiency.

Software compatibility guarantees consistent integration with existing plan workflows. Bolster for numerous record designs and CAD integration capabilities upgrade operational adaptability. Framework unwavering quality pointers incorporate component quality, guarantee scope, and producer back capabilities.

Investment Analysis and Financing Options

Equipment venture examination considers beginning securing costs, operational costs, and long-term esteem creation. Unused gear gives the most recent innovation highlights with a full guarantee scope. Utilized hardware alternatives may offer fetched reserve funds but require cautious assessment of condition and remaining benefit life.

Leasing courses of action gives cash stream focal points for businesses with budget imperatives or regular request designs. Buying alternatives empowers long-term resource proprietorship with potential charge benefits. Adding up to the taken toll of possession investigation ought to incorporate support, preparation, and back expenses.

Supplier Evaluation and Support Services

Comprehensive provider assessment looks at specialized skill, back capabilities, and long-term practicality. Universal shipping involvement guarantees legitimate taking care of accuracy gear amid travel. Establishment administrations and administrators preparing programs encourage smooth implementation.

Ongoing bolster administrations count specialized help, save parts accessibility, and overhaul ways to ensure the gear venture. Reaction time commitments and benefit level understandings guarantee negligible generation disturbance amid upkeep or repair circumstances.

Perfect Laser: Your Trusted Partner in Crystal Engraving Technology

Culminate Laser Co., Ltd. stands as a world-renowned producer of mechanical laser gear, bringing about three decades of ability to the gem etching industry. Since 1995, our commitment to advancement has outcomes in over 20 item arrangements, including more than 300 unmistakable machine sorts, each planned to meet particular mechanical requirements.

Our gem etching frameworks combine cutting-edge UV laser innovation with exactness building to provide extraordinary comes about over different applications. The comprehensive item portfolio incorporates enormous-measure 3D laser etchers for mechanical generation, medium-estimate frameworks for commercial applications, and compact desktop units  for specialized boutique operations. Discretionary 3D camera integration empowers advanced representation etching capabilities that grow imaginative possibilities.

Our designing greatness is approved through universal certifications counting, CE, TUV, and SGS qualifications. Two committed inquiry and improvement centers collaborate on ceaseless development, bolstered by 63 national licenses that illustrate our innovative authority. Progressed generation and testing hardware guarantee each framework meets thorough quality guidelines some time recently delivery.

The worldwide reach of Idealize Laser expands over Germany, Japan, Italy, Russia, South Korea, Turkey, Brazil, India, the United Arab Emirates, and Saudi Arabia. Our customer-centric approach offers 24-hour online service, complimentary product consultation, solution recommendations, and comprehensive testing services. Professional installation support and 12-hour response times ensure minimal downtime and maximum efficiency, particularly for advanced systems like the subsurface laser engraving machine.

Conclusion

The technological sophistication of modern 3D crystal laser engraving machines represents a convergence of precision engineering, advanced optics, and intelligent software integration. Understanding these key technologies empowers businesses to make informed equipment decisions while maximizing their creative and commercial potential. The combination of UV laser precision, galvanometer scanning speed, and maintenance-free operation creates exceptional value for diverse applications ranging from tourism souvenirs to premium corporate gifts. Investment in quality crystal engraving technology opens new revenue streams while establishing competitive advantages in increasingly demanding markets.

FAQ

1. What makes 3D crystal laser engraving superior to traditional engraving methods?

3D crystal laser engraving creates internal patterns within transparent materials without surface contact, achieving precision impossible with mechanical methods. The technology enables complex three-dimensional designs with exceptional detail clarity while eliminating tool wear and material waste.

2. Which software programs are compatible with modern crystal engraving systems?

Professional crystal engraving systems support industry-standard software including AutoCAD, SolidWorks, and specialized engraving programs. File format compatibility encompasses DXF, PLT, CNC, STEP, and IGES formats, ensuring seamless integration with existing design workflows.

3. How frequently do crystal engraving machines require maintenance?

Modern systems feature maintenance-free optical designs with modular components that simplify routine care. Regular cleaning of optical elements and periodic alignment verification maintain optimal performance. Preventive maintenance schedules typically recommend quarterly inspections for commercial applications.

Transform Your Business with Advanced Crystal Engraving Technology

Ready to elevate your business with precision crystal engraving capabilities? Perfect Laser combines decades of manufacturing expertise with cutting-edge technology to deliver exceptional 3d crystal laser engraving machine solutions. Our comprehensive systems support tourism businesses, photography studios, gift retailers, and hospitality venues seeking high-quality personalized products.

Connect with our technical specialists to explore customized solutions that match your specific requirements. We provide detailed consultations, product demonstrations, and sample testing to ensure optimal equipment selection. Contact Perfect Laser today at [email protected] to discuss your crystal engraving needs with our experienced 3d crystal laser engraving machine supplier team.
