How Subsurface 3d Laser Engraving Works on Crystal and Glass Trophy?

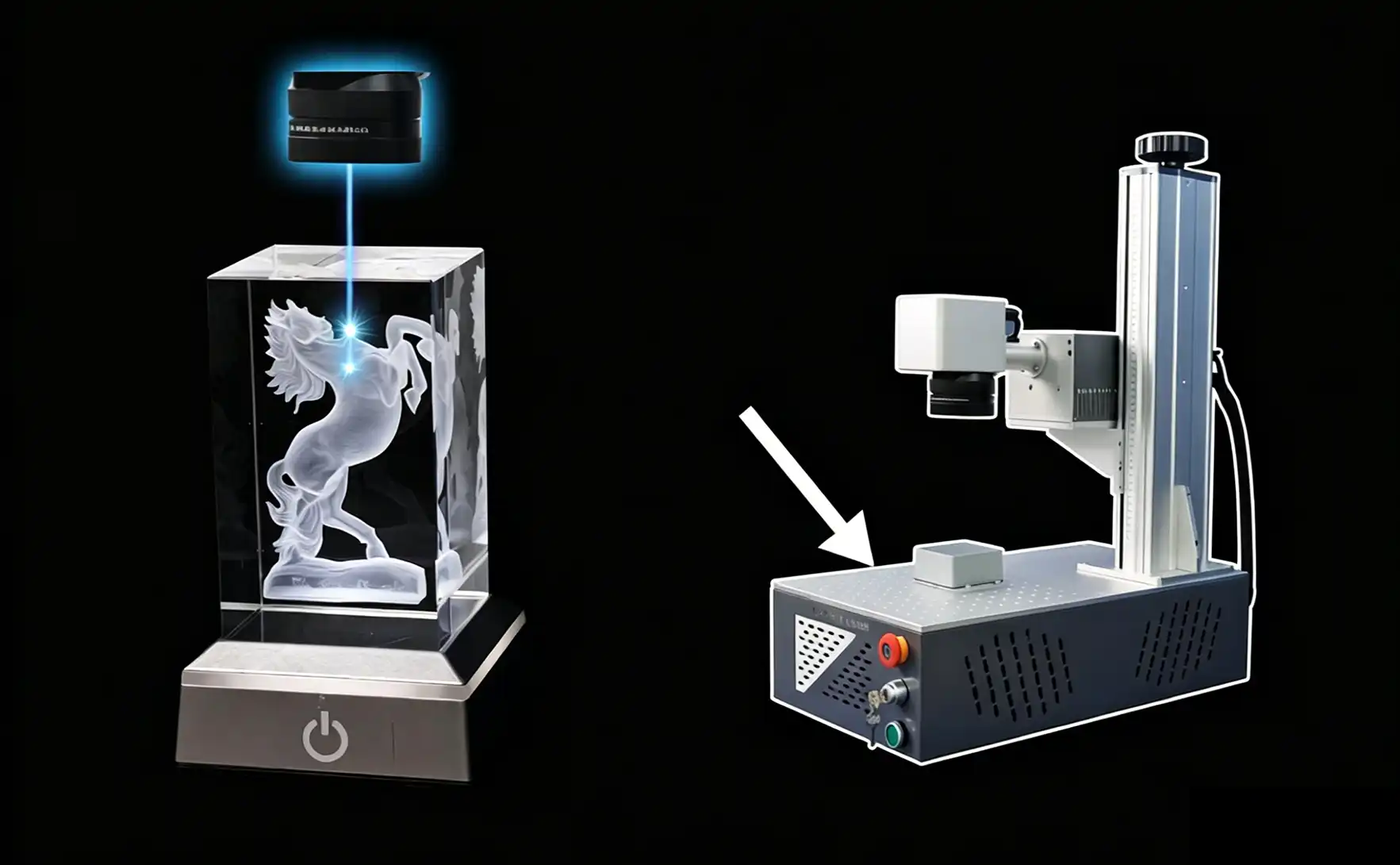

Using intense laser pulses, subsurface 3D laser etching makes accurate microfractures in crystal and glass trophies to create stunning three-dimensional images. Energy is focused into the crystal matrix by a subsurface laser engraving machine. Crisp, polished exterior. Trophy and promotional item producers may create decade-long gifts with unparalleled richness and beauty with this cutting-edge technology.

Understanding Subsurface 3D Laser Engraving Technology

Subsurface carving involves precisely regulating laser energy to create microscopic stress points in glass and crystal. Artfully placed fractures create fascinating shapes that diffuse light beautifully. This luminous effect makes subsurface sculptures intriguing.

How Laser Pulses Create Internal Patterns

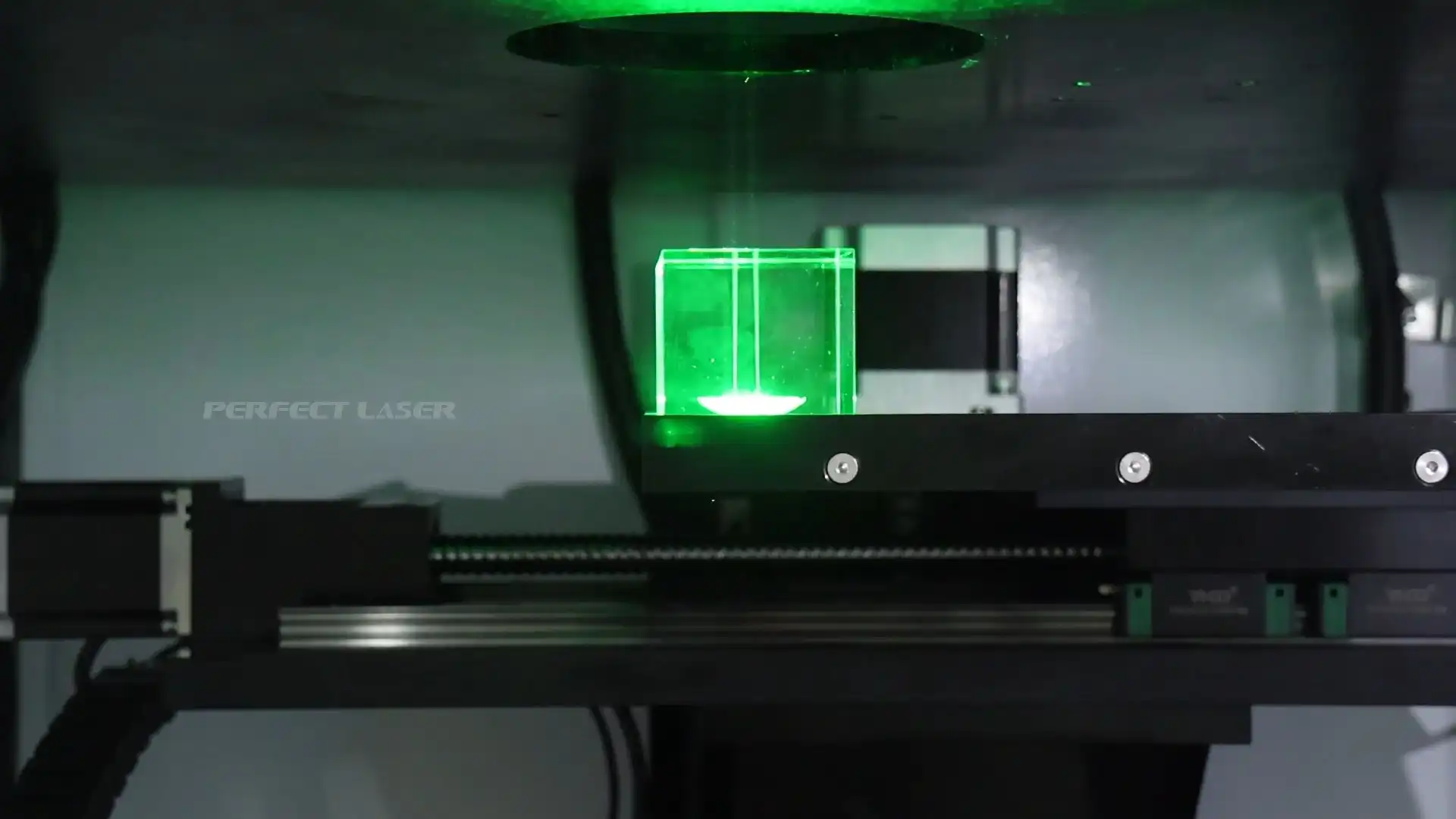

Modern subsurface laser engraving equipment uses nanosecond pulse lasers. While the energy transfer is slightly longer than ultrafast systems, controlled pulse delivery helps manage heat accumulation and enables precise modification of material structures. Concentrated laser energy below the surface can still reach the material’s damage threshold, forming microvoids or refractive index changes. This process relies on beam control systems to adjust focus depth, pulse duration, and energy levels. Advanced machines can produce layered 3D internal patterns by coordinating these parameters across numerous pulse points.

Types of Laser Systems for Subsurface Applications

Strengths and weaknesses of subsurface laser engraving machine and subsurface etching lasers differ. Lasers at 1064nm cut big crystals effectively, although those at 532nm are better for fine work. High-volume production uses fibre laser systems because they are reliable and low-maintenance.Perfect Laser offers compact 600×400 mm to 1600×1000 mm laser systems based on 532 nm green laser technology, suitable for applications requiring higher absorption on reflective or sensitive materials. These trophy-making technologies are adaptable and accurate for subterranean usage. Big prize pieces and large batch processing may be processed on our 1600x2600mm flatbed machines.

Technical Specifications That Matter

Good subsurface engraving relies on beam quality (M² factor), pulse length control, and focusing optics precision. High-quality systems keep beam quality factors below 1.3 to maintain focus over the working volume. Nanosecond pulse length control prevents heat effects and reliably modifies materials. Companies who wish to enter the high trophy industry must use the proper tools since these technological abilities affect product speed and quality.

Advantages of Using Subsurface Laser Engraving for Crystal and Glass Trophies

Many benefits of subsurface etching affect the cost and quality of trophy production. Knowing these advantages helps purchasing teams assess how the technology will impact corporate objectives and consumer satisfaction.

Enhanced Durability and Longevity

Surface engraving leaves raised or recessed portions that may wear away, whereas subsurface patterns are permanent. This safety eliminates scratches, fading, and cleaning and handling damage. Trophy winners may enjoy their rewards forever, and the engraved design will look wonderful. Trophy longevity is extremely important in company honour programs. Companies that invest in employee rewards prefer knowing they will look good after years of use.

Superior Visual Impact and Aesthetic Appeal

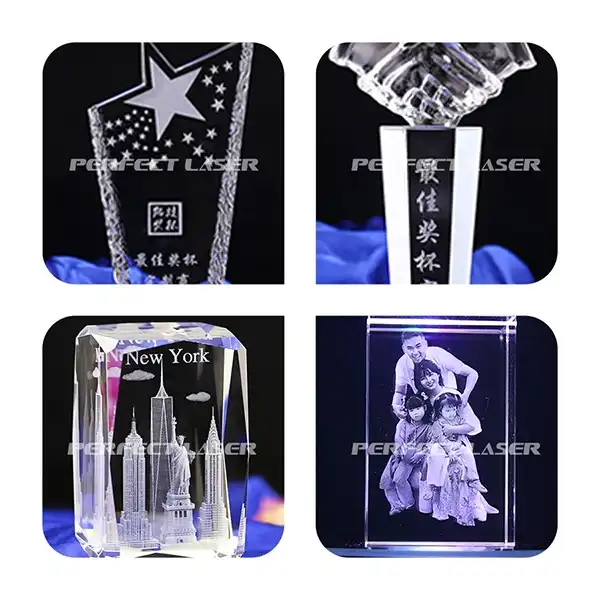

Subsurface carvings produced by a 3d crystal laser engraving machine provide unique visual effects. The interior patterns and lights surrounding them produce dynamic visual displays that alter with viewing angle and illumination. This three-dimensional depth provides the reward a luxurious aspect that boosts its value. Modern subsurface laser engraving machines can generate realistic pictures, detailed branding, and geometric shapes with many angles. Adding numerous depth levels to a work offers for additional creative alternatives that distinguish exceptional honours.

Production Efficiency and Cost Benefits

Compared to manual finishing, automatic subsurface engraving requires fewer processes. The non-contact approach reduces material handling time and maintains production quality. Less setup time between projects boosts efficiency, particularly for bespoke prize orders with various criteria. Perfect Laser's cutting and engraving technologies streamline productivity by combining operations. Our precision tools waste less material and speed up manufacturing cycles, which affects trophy and promotional goods companies' profits.

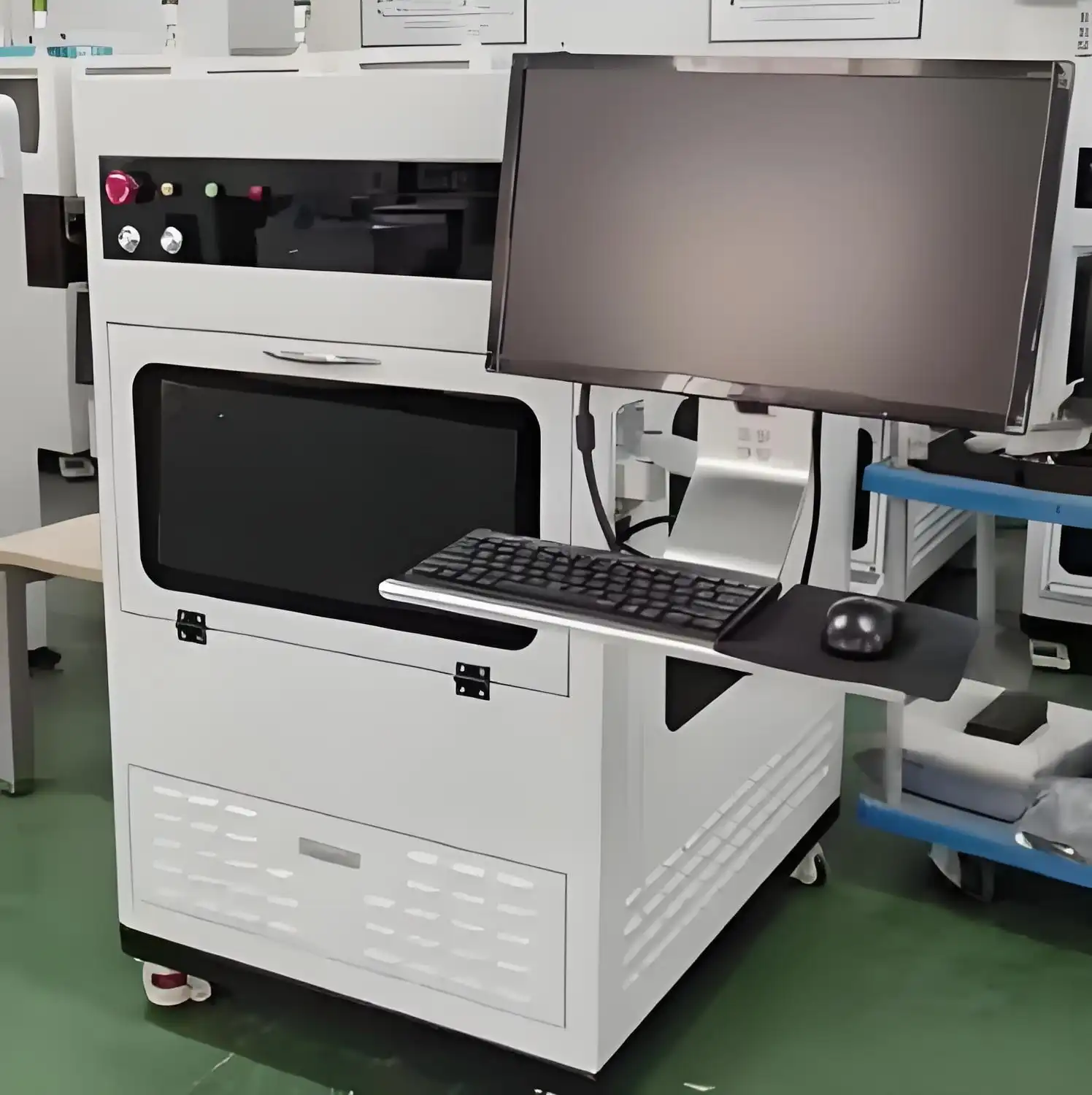

Choosing the Right Subsurface Laser Engraving Machine for Your Business

To choose the right tools, you need to carefully think about your production needs, quality standards, and operating limitations. Because the choice affects long-term profits and market positioning, it is important to do a lot of research before making a purchase.

Assessing Production Volume and Throughput Requirements

Knowing the daily, weekly, and seasonal production needs helps you figure out what features and setup choices your machine needs to have. Larger work places and faster processing speeds are better for businesses that do a lot of work, while smaller businesses may value flexibility and lower beginning investment costs. Perfect Laser has options that can be scaled up or down to meet different output needs. Our small systems are good for new businesses and specialized tasks, while our bigger flatbed models are better for places with a lot of production. Businesses can add more features as needed with the flexible method.

Evaluating Precision and Quality Capabilities

For different uses, different amounts of accuracy and quality are needed. Corporate awards and high-end medals need very high levels of detail, but advertising items can get away with lower quality levels to keep their prices low. Figuring out these needs helps you choose the right tool. Minimum feature size, depth precision, and surface finish consistency are all important quality factors. Modern 3d laser engraving machine systems can make features with resolutions below 10 microns and depth errors of less than 5 percent across the whole work area. For demanding uses, these standards make sure that the quality is always the same.

Integration with Existing Production Systems

These days, making trophies often includes several steps, such as cutting, polishing, putting together, and packing. To be as efficient as possible and cause as little trouble as possible during installation, laser engraving systems must work with current processes without any problems. Standard interfaces and software compatibility with famous design tools like AutoCAD and CorelDRAW are built into Perfect Laser's equipment. Our machines work with a number of different file formats and connection methods, which makes it easier to connect them to production management systems that are already in place.

Total Cost of Ownership Considerations

Aside from the original buy price, operating costs have a big effect on how much money a business makes in the long run. The total cost of owning a piece of equipment over its lifetime includes the cost of energy use, repairs, replacement parts, and training for operators. Because we've been making things for 20 years, we can create systems that don't need much upkeep and last a very long time. Perfect Laser machines are built to last, with sturdy construction and dependable parts that keep working well for a long time. This lowers running costs and the chance of downtime.

Maintenance and Operational Best Practices for Subsurface Laser Engraving Machines

Good maintenance techniques preserve printing quality, equipment life, and avoid unexpected downtime. Systematic maintenance preserves investment value and pleases consumers.

Routine Maintenance Procedures

Cleaning optical parts regularly maintains beam quality and prevents power loss that might affect etching. Cleaning lenses and mirrors using lint-free solutions is essential. Contamination steadily degrades the beam, so check and clean it often. The cooling system prevents laser parts from overheating and causing instability. Regular coolant changes, filter replacements, and leak checks maintain optimal temperatures. Temperature directly affects beam characteristics and carving quality.

Calibration and Alignment Protocols

With the beam properly aligned, engraving depth and position precision for a subsurface laser engraving machine are the same throughout the work area. To detect alignment drift before it impacts production quality, use test patterns for frequent calibration checks. Automatic alignment checks simplify tuning in more complex systems. Precision parts and sturdy mechanical designs keep excellent laser machines aligned for lengthy durations. Easy-to-reach adjustment tools and explicit calibration processes make maintaining our systems quicker and easier.

Troubleshooting Common Issues

Knowing how to address common difficulties fast helps with practical challenges. Common concerns include power fluctuations, beam quality degradation, and alignment errors. Systematic testing finds fundamental issues fast, reducing production disruptions. Troubleshooting instructions, remote diagnostics, and fast parts are part of our technical support. The internet service is 24/7. Operational issues are addressed immediately, respecting work timelines and client commitments.

Procurement Guide and How to Buy Subsurface Laser Engraving Machines

You must examine suppliers, technology, and support to acquire tools effectively. Choose the correct source since the purchase process affects long-term operations and ROI.

Supplier Evaluation Criteria

Reliable companies perform as promised, have professional expertise, and can assist fully. Manufacturer experience, safety certificates, and customer references might indicate a seller's reliability and product quality. International certifications like CE, TUV, and SGS demonstrate safety and efficiency. Perfect Laser has been creating lasers for 29 years and is global. This demonstrates our commitment to quality and client happiness. Our products are sold in Germany, Japan, Italy, Russia, South Korea, Turkey, Brazil, India, the UAE, Saudi Arabia, and others. This proves their reliability in several sectors.

Technical Specification Requirements

Detailed technical criteria assist select and ensure production-ready tools. Work area size, power, precision, and machine usage should be specified. Clear standards make vendor offerings and comparisons more accurate. Our subsurface laser engraving machine systems may be configured for diverse purposes. Standard versions have been proven and function well in most scenarios, while bespoke designs are tailored to manufacturing demands.

Warranty and Support Considerations

Full warranty coverage and fast technical support safeguard your tool investment and company. The warranty should cover key parts, software upgrades, and professional assistance. Support aspects including parts, training, and upgrades impact long-term operational performance. The Perfect Laser warranty is extensive. It lasts two years for marking systems and one year for larger tools. Our worldwide service network ensures fast response and global part availability. This eliminates business issues and downtime.

Financing and Payment Options

Equipment financing may boost cash flow and speed up the application procedure. Leasing, monthly payments, and bulk discounts keep tool pricing in line with their profits. Know your options to develop the finest financial plans and budgets. We create customised payment plans for our clients' cash flow and company objectives. Volume rates and specialised installations benefit larger systems and strategic collaborations.

Conclusion

Subsurface 3D laser etching is a revolutionary technology that has changed the way crystal and glass trophies are made. It offers unmatched longevity, beauty, and production efficiency. Knowing the technical details, practical benefits, and buying factors helps you choose the right tools for your business, which leads to success. Because the technology can make lasting, high-quality engravings in crystal and glass, it creates new market possibilities and lowers the cost of production. Modern subsurface laser engraving machine systems are accurate, dependable, and adaptable enough to meet the needs of a wide range of industries, including those that make trophies, promotional items, and custom engraving. Choosing the right tools, keeping it in good shape, and building strong relationships with suppliers that support long-term operating success are all important for a successful implementation.

FAQ

1. What materials work best with subsurface laser engraving?

Materials made of crystal and optical glass work best for deep etching. There aren't many flaws in high-quality crystal that could get in the way of laser penetration and pattern formation. Different types of optical glass are very clear and have a uniform internal structure that makes them good for cutting with fine details.

2. How deep can subsurface patterns extend within crystal trophies?

The level of engraving that can be done depends on the material and the laser system's specs. Depending on the crystal thickness and design complexity, most devices can engrave anywhere from 5 mm to 50 mm below the surface. For deeper carvings, you need a stronger laser and more time to finish the work.

3. What resolution levels are achievable with modern subsurface engraving systems?

For intricate pattern work, the latest subsurface laser engraving machine technology can get feature details close to 10 microns. The resolution depends on the quality of the laser beam, the accuracy of the aiming lenses, and the properties of the material. Fine text, complicated branding, and lifelike image engravings can all be made possible by higher resolutions.

Partner with Perfect Laser for Advanced Subsurface Engraving Solutions

Are you ready to improve your trophy-making skills with the latest deep engraving technology? Perfect Laser's full range of subsurface laser engraving machine solutions mix 29 years of manufacturing experience with cutting edge technology to give you the best results for your crystal and glass award needs. Our skilled staff knows exactly what promotional product companies, advertising firms, and custom award makers need when they're looking for reliable, high-quality gear. As a trusted subsurface laser engraving machine manufacturer, we provide complete solutions including equipment selection, installation support, operator training, and ongoing technical assistance. Our world service network makes sure that your business gets quick help no matter where it is located. Please email our experts at [email protected] to discuss your specific needs and find out how our cutting-edge laser systems can change the way you make things while also giving you results that are above and beyond what your customers expect.
