Dot Peen Marking Explained: How It Works and Where It Is Used

A dot peen marking machine uses a stylus with a hardened carbide or diamond tip to make lasting lines on a surface by hitting it quickly. This makes a series of controlled indentations that can be used to write text, serial numbers, logos, or Data Matrix codes. This method of industrial marking pushes information into metals and hard plastics, making it permanent. This makes sure that things can be tracked even in tough conditions where stickers or ink would not work. Manufacturers can choose the best option for permanent part labelling when they know how this technology works and where it offers the most value.

Understanding Dot Peen Marking Technology

How Dot Peen Marking Technology Works

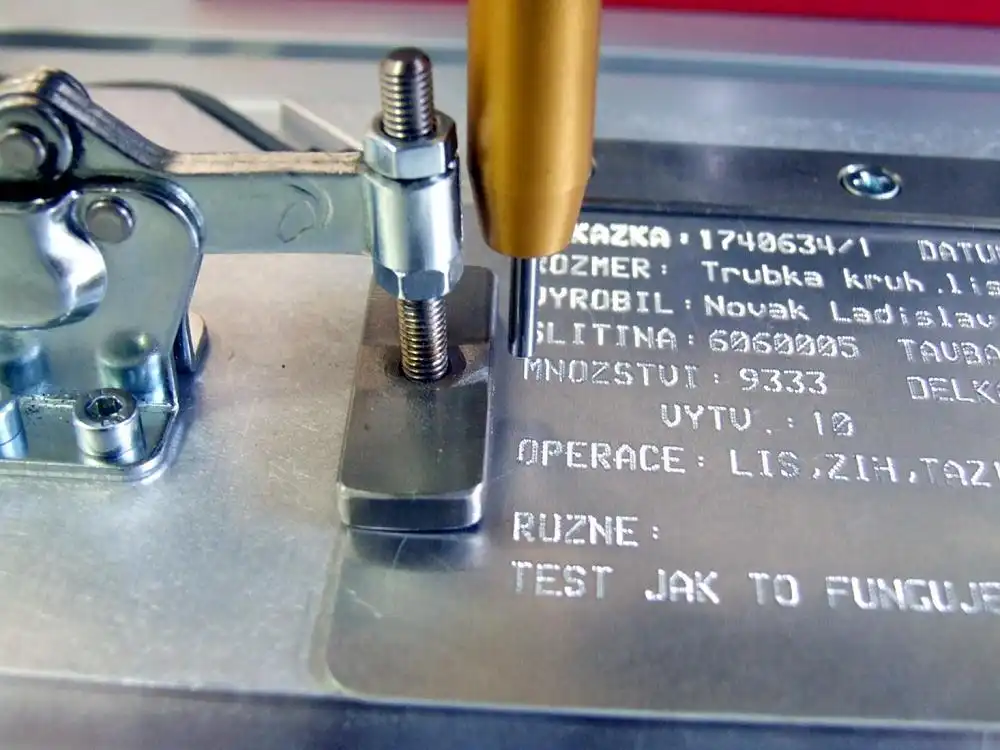

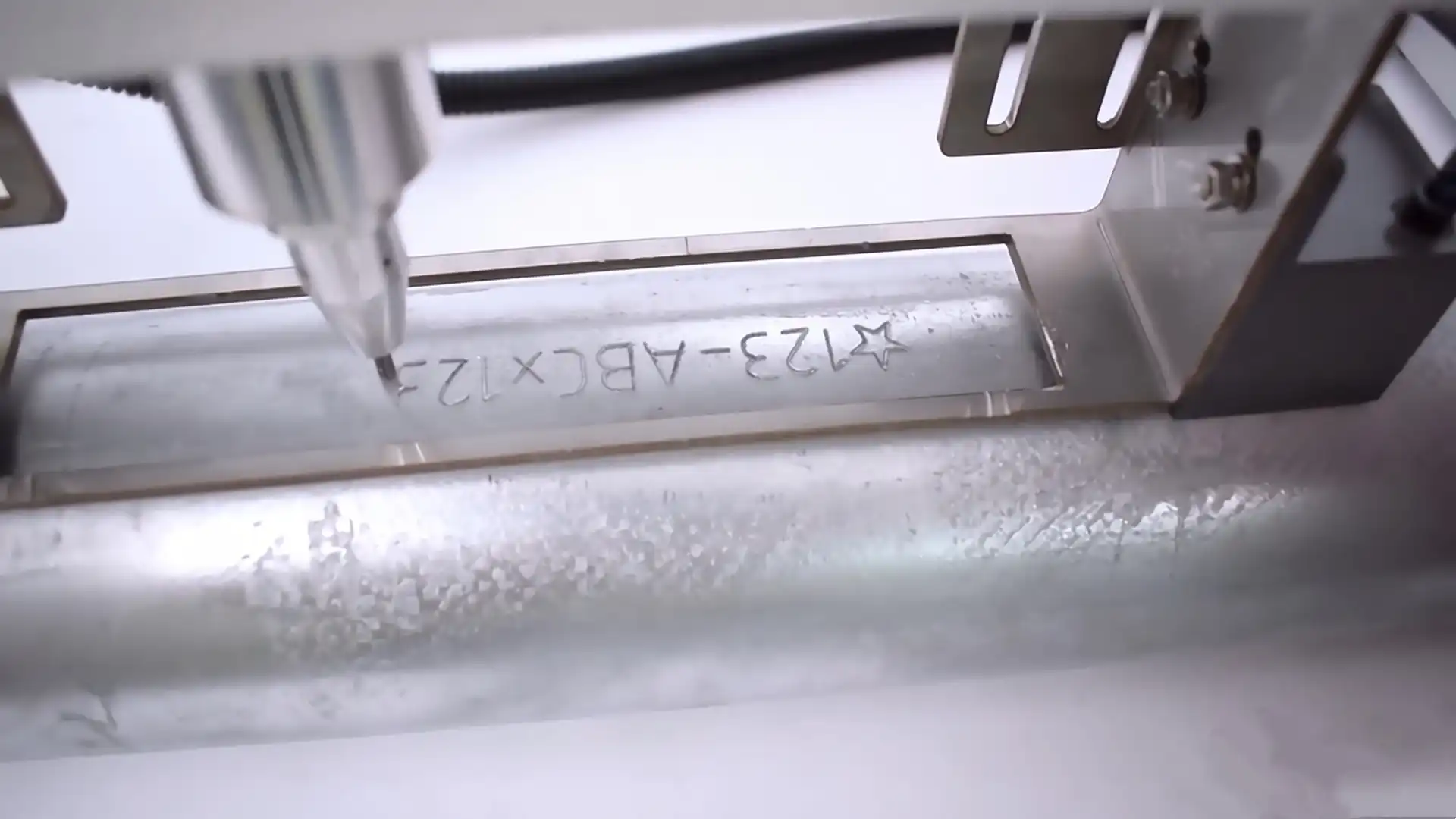

Using a carbide or harder pen to make a number of closely spaced dots on a material surface is called dot peen marking. This is a mechanical impact process that leaves lasting marks. Software tells the pen exactly which way to move in X and Y to make letters, numbers, images, or 2D codes. Laser marking uses heat to make the mark, but a dot peen marking machine changes the shape of the surface. This makes the mark very strong and resistant to wear, rust, and hard conditions. This makes it perfect for writing for tracking on industry parts that need to be identified for a long time during their whole lives.

Main Types and Key Components of Dot Peen Machines

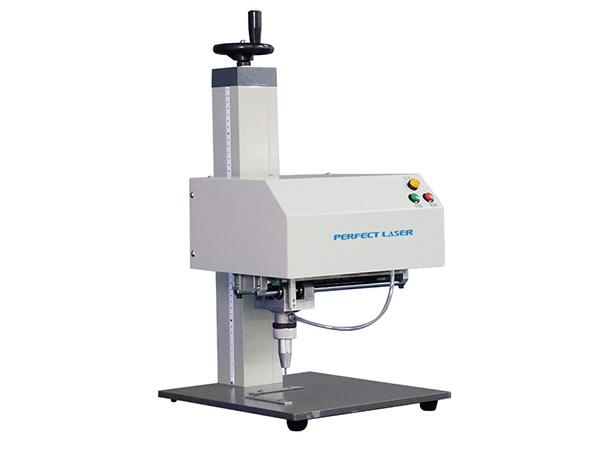

Modern dot peen systems come in a variety of shapes and sizes to meet the needs of different industries. These include flat desktop models, rotating marking systems for cylinder-shaped parts, small pocket devices, and units with LCD screens that are easy to use. A standard dot peen marking machine has a motor, a guide system, a marking head, and a software interface. Perfect Laser uses modern CNC design and exact motion control systems to make sure that the quality of the marks is always the same. These machines can handle both small, precise parts and large, heavy-duty parts because they can be set up in a variety of ways. This makes them very flexible and useful in a wide range of production settings.

Industrial Advantages and Application Value

Because it is permanent and reliable, dot peen writing is used a lot in the medical, construction, electronics, and car industries. Because it can mark steel, metal, copper, PVC, and hard plastics, it's great for things like engine parts, tools, valves, nameplates, and instrument screens. Perfect Laser builds on these benefits by putting products through strict quality checks, getting CE/TUV/SGS certifications, and doing a lot of research and development that is backed by many patents. Their dot peen marking machine options are known for being stable, easy to use, and having a long life. This helps makers make workplace labeling that is both quick and easy to track.

Key Benefits and Industrial Applications

Permanent and High-Precision Marking Performance

One of the best things about a dot peen marking machine is that it can mark a lot of different materials permanently and accurately. It makes sure that serial numbers, names, and codes can still be read even in tough industrial conditions like friction, heat, or rust by manually indenting the surface with controlled dot patterns. Perfect Laser makes this even more reliable by using strict machine testing systems and cutting edge CNC technology to make sure stable performance and uniform writing depth. This makes it perfect for fields that need to be able to track things and identify them for a long time.

Wide Material Compatibility and Industrial Flexibility

Dot peen writing can be used on a lot of different materials, like PVC, metal, copper, steel, and hard plastics. Because of this, a dot peen writing machine can be used in many different fields without having to make big changes to the tools. The system marks everything from heavy-duty metal parts to precise plastic parts in a clean and controlled way. Because Perfect Laser does a lot of research and development and uses precise engineering, each machine can easily change to different production needs. This means that they can be used in settings that make cars, electronics, tools, and instruments.

Extensive Applications Across Manufacturing Industries

This type of writing can be used on many things, such as engine parts and bearings for cars, metal tools like cuts and locks, and electronic parts like circuit boards and panels. It is also commonly used for nameplates, tags, jewelry items, and medical tools that need to be identified for a long time. Perfect Laser offers different versions of the dot peen marking machine, including rotating and portable types, so makers can use it effectively in a range of production situations. It is a safe choice for current industrial production lines because it is stable and easy to use.

Dot Peen Marking vs. Alternative Marking Technologies

Dot Peen Marking vs. Laser Marking Technology

Laser and dot peen marking are popular industrial identification systems, however they function differently. Dot peen marking machines indent surfaces, whereas laser marking changes color or structure with a high-energy beam. For durable deep engraving on engine components or tools, dot peen is ideal. Laser marking works well for fast, precise applications like electronics and delicate branding. Perfect Laser provides both technologies so clients may pick the best one for material, depth, and production environment.

Dot Peen Marking vs. Inkjet Printing Systems

Dot peen marking is more durable than inkjet printing. Surface ink deposition in inkjet systems may fade, smear, or deteriorate, particularly in hostile industrial conditions. Dot peen marking machines provide permanent engraved markings that are readable under heat, abrasion, and chemicals. Automotive, equipment, and metal fabrication sectors benefit from its traceability. Manufacturers may replace consumable-based printing systems with Perfect Laser's dot peen solutions, which are stable and long-lasting.

Why Choose Dot Peen for Industrial Traceability

Dot peen marking is a cost-effective and durable option for long-term part identification. Dot peen marking machines provide consistent results with low running costs, unlike other techniques that need consumables or maintenance. It is ideal for marking serial numbers, batch codes, and product IDs on automotive, hardware, and electronics metals and hard plastics. Perfect Laser's strong R&D, thorough quality testing, and international certifications like CE, TUV, and SGS provide steady performance and traceability in challenging industrial situations.

Maintenance, Accuracy, and Performance Optimisation

Easy Maintenance and Long-Term Operational Stability

Its minimal maintenance structure makes dot peen marking machines reliable in industrial settings. Dot peen equipment uses fewer consumables than more sophisticated marking systems, minimizing downtime and repair costs. To guarantee smooth movement and excellent marking, stylus, guide rail, and mechanical components are checked regularly. Through thorough production testing and sophisticated CNC manufacturing standards, Perfect Laser ensures each device performs reliably even under heavy-duty usage in factories and production lines.

High Precision Marking for Consistent Industrial Quality

Industrial marking requires accuracy for traceability and product identification. CNC software carefully controls stylus movement in a dot peen marking machine to maintain depth and spacing. This makes serial numbers, codes, and emblems obvious and consistent across materials. Perfect Laser improves marking stability and reproducibility with modern control systems and precise motion components. Automotive, electronics, and industrial sectors need accurate identification for quality control and product tracing.

Performance Optimisation for Industrial Efficiency

Performance improvement in dot peen technology is essential for contemporary production. Flat, rotary, and portable dot peen marking machines may be adapted for diverse production demands, providing flexible workflow integration. R&D, intelligent control, and thorough machine testing boost efficiency at Perfect Laser. Manufacturers may boost production and quality with consistent marking speed, configurable depth, and long-term operation. This makes dot peen systems ideal for fast, durable high-volume industrial situations.

Procurement Guide for Dot Peen Marking Machines

Key Factors to Consider Before Purchasing

Buyers of dot peen marking machines should consider material compatibility, marking depth, and manufacturing environment. Automotive, electronics, and hardware sectors demand different accuracy and durability. As manufacturing demands change, evaluate whether the machine supports flat, rotary, or portable applications. Perfect Laser offers many configurations to fulfill industrial needs, allowing customers to pick the best one. To maintain daily production efficiency, solid structural design, reliable performance, and simplicity of operation should be considered.

Choosing the Right Model for Your Application

Different production scenarios require different machine types, making model selection a crucial step in procurement. A dot peen marking machine can be used for flat surfaces, cylindrical parts, or even large or mobile workpieces depending on its design. For example, rotary models are ideal for shaft or cylinder marking, while portable versions suit large or immovable parts. Perfect Laser offers a wide range of dot peen solutions, including flat, rotary, and LCD-controlled systems, ensuring flexibility across industries. With strong R&D capabilities and advanced CNC technology, each model is engineered to deliver stable and precise marking performance.

Why Choose a Reliable Manufacturer Like Perfect Laser

Long-term equipment performance and after-sales support need a reliable manufacturer. CE, TUV, and SGS-certified Perfect Laser offers high-quality marking solutions with over 20 series and 300 industrial equipment. A Perfect Laser dot peen marking machine has thorough factory testing, modern manufacturing equipment, and a skilled technical staff. The firm provides 24-hour online service, OEM customization, and warranty support to ensure dependable machines and thorough technical support throughout the equipment lifespan.

Conclusion

Dot peen marking machines are used in many manufacturing settings where traceability, compliance, and long-term readability are important to provide lasting labeling. Impact-based marking is mechanically simple, and current software control makes it possible to make systems that can handle everything from small electronics parts to huge structural elements. Knowing how the equipment works, what it needs to be maintained, and what benefits it has for a certain purpose helps you choose equipment that fits your output needs and your budget. As the need for industrial traceability grows around the world, permanent direct part marking becomes more important. This makes dot peen systems useful for marking metals and hard plastics in the electronics, metalworking, and automobile industries.

FAQ

1. What distinguishes dot peen from laser marking?

Dot peens use strong hits and direct movement to form depressions. Laser marking oxidizes, etching, or anneals the surface using focused light. Dot peen equipment is cheaper and requires less safety infrastructure. However, laser devices can operate quicker and with better details, but operators require shelters and training. Not all laser wavelengths operate with all materials. Dot peen can work on glossy metals without preparing, however certain laser wavelengths struggle with polished aluminum or copper. Laser markings may only be seen, but dot peen marks may be felt.

2. Which materials work best with dot peen marking machines?

Dot peen may mark steel, stainless steel, aluminum, brass, copper, and titanium. Hardened tool steels and bearing materials take marks well, although you may need to hammer them harder. You may label PVC, ABS, and acetal copolymer with different impact settings. Wood, leather, and foam absorb pressure without leaving marks, making them bad. Very weak materials may shatter when stylus touches. Dot peen marking machines can mark thin sheet metal if the backing is strong enough to prevent deflection. Surface hardness is more critical than material thickness.

3. How often does a dot peen marking machine require maintenance?

Daily cleaning and visual evaluation take minutes and are regular maintenance. Stylus replacement depends on use. After writing a few million characters, it must be changed every three months in high-volume operations or once a year in lighter ones. Tools are calibrated every three months to ensure accuracy. Most manufacturers suggest mechanical lubrication every six months to a year. Maintenance is still minimal compared to systems that change consumables or correct optics complicatedly.

Partner With Perfect Laser for Your Industrial Marking Solutions

Picking the right dot peen marking machine provider will make sure that your investment works well for as long as it's used. With 30+ years of experience making industrial equipment, Perfect Laser helps customers all over the world with marking options that are perfect for electronics, metalworking, and cars. Our wide range of products includes flat dot peen marking machines for standard workpieces, rotary systems for cylinder-shaped parts, portable units for marking in the field, and special configurations for oxygen cylinders and flanges. All of these are designed to leave permanent, high-quality marks on metals and hard plastics.

We understand that buyers are worried about how reliable the equipment is, how easy it is to get expert help, and how to train workers to use it. Because of this, we offer strong warranties on our tools, offer quick technical help, and give full training to operators. Our application engineers can help you figure out the best way to set up your system, whether you need a single movable unit or a combined system for automated marking. Contact our team at [email protected] to talk about your marking needs with seasoned experts who know the problems your business faces and can suggest tried-and-true solutions from a reputable dot peen marking machine maker.

References

1. Smith, J. R., & Williams, K. T. (2021). Permanent Part Identification Technologies in Manufacturing. Industrial Press.

2. Anderson, M. L. (2020). Direct Part Marking: Methods, Standards, and Best Practices. Journal of Manufacturing Systems, 45(3), 234-247.

3. Chen, H., & Rodriguez, P. (2022). Traceability Solutions for Automotive Component Manufacturing. SAE International.

4. National Institute of Standards and Technology. (2019). Guidelines for Permanent Product Marking and Identification. U.S. Department of Commerce.

5. Taylor, R. D. (2023). Comparative Analysis of Industrial Marking Technologies: Cost, Durability, and Application Factors. Manufacturing Engineering Review, 58(2), 112-128.

6. International Organization for Standardization. (2020). ISO 16022: Information Technology—Automatic Identification and Data Capture Techniques—Data Matrix Bar Code Symbology Specification. ISO Standards Catalogue.
