How to Cut with a Co2 Laser Engraver: Beginner to Pro Guide

A CO2 laser cutter is a exactness machine that coordinates a concentrated infrared bar through a gas blend to vaporize, liquefy, or burn through non-metallic materials with uncommon precision. The innovation depends on energizing carbon dioxide gas inside a fixed tube, creating a effective 10.6-micrometer wavelength bar that is retained proficiently by materials like wood, acrylic, calfskin, and texture. This computer-controlled framework guides the pillar through mirrors and centering focal points, empowering perplexing cuts and point by point inscriptions that meet the requesting guidelines of cutting edge fabricating, prototyping, and custom creation environments.

Understanding How a CO2 Laser Cutter Works

The operational guideline behind laser cutting innovation includes a few interconnected components working in concordance. When electrical current passes through a blend of carbon dioxide, nitrogen, and helium gasses interior the laser tube, photons collect vitality and make a coherent light pillar. This pillar exits the tube and voyages through a arrangement of high-quality mirrors that divert it toward the cutting head, where a centering focal point concentrates the vitality into an greatly little central point, ordinarily littler than a millimeter in diameter.

Core Components and Their Functions

The laser tube serves as the heart of any CO2 laser cutting machine, with power ratings ranging from 40 watts for delicate engraving tasks to several hundred watts for cutting thicker materials. Cooling systems play a vital role in maintaining optimal operating temperatures, preventing thermal damage to the tube and ensuring consistent beam quality throughout extended production runs. The CW-3000 chiller, integrated into systems like the PEDK-9060 model, monitors temperature continuously and triggers protective shutdowns if parameters exceed safe thresholds.

Motion control frameworks decide cutting accuracy and repeatability. High-quality direct direct rails, such as those made by Hiwin, give smooth development over both X and Y tomahawks whereas stepper or servo engines decipher computerized commands into physical movement. The honeycomb stage underneath the cutting region permits for legitimate wind current and avoids back-reflection that seem harm the workpiece or optics.

Material Compatibility and Limitations

CO2 laser frameworks exceed expectations at preparing natural materials and certain plastics since these substances promptly retain infrared wavelengths. Acrylic sheets cut cleanly with cleaned edges that frequently require no post-processing, making them perfect for signage, show cases, and structural models. Wood assortments from balsa to hardwoods react well to laser cutting, empowering complicated designs for furniture components, enriching boards, and creative installations.

Material determination requires cautious thought of security and hardware compatibility. Polyvinyl chloride discharges chlorine gas when warmed, making destructive hydrochloric corrosive that harms optical components and postures wellbeing risks. Essentially, materials containing fiberglass or carbon fiber produce particulates that can sully the laser way and compromise cut quality. Continuously counsel fabric security information sheets and conduct little test cuts in well-ventilated regions some time recently committing to full generation runs.

Comparing CO2 Technology with Alternative Cutting Methods

Understanding the refinements between diverse cutting innovations makes a difference acquirement groups make educated gear ventures. Fiber laser frameworks create pillars through optical strands doped with rare-earth components, creating wavelengths around 1.06 micrometers that metals assimilate effectively. Whereas fiber lasers rule metal manufacture applications, their execution on non-metallic materials for the most part falls brief of CO2 lasers in terms of edge quality and preparing speed.

CNC switches utilize turning cutting bits to expel fabric mechanically, advertising flexibility over materials but missing the accuracy and clean edges that laser cutting conveys. Switch bits require intermittent substitution, present vibration into the cutting handle, and create essentially more clean and flotsam and jetsam compared to laser frameworks. The non-contact nature of laser handling kills instrument wear and permits for cutting sensitive materials that would tear or distort beneath mechanical stress.

Setting Up Your CO2 Laser Cutter for Optimal Cutting Performance

Proper setup changes a able machine into a accuracy fabricating device that reliably conveys proficient comes about. The setup handle starts with physical establishment in a area that gives satisfactory ventilation, steady electrical control, and adequate clearance for fabric stacking and administrator get to. Surrounding temperature and mugginess levels ought to stay inside producer determinations to avoid condensation on optical surfaces and keep up reliable fabric properties.

Calibration Procedures and Parameter Adjustment

Beam arrangement speaks to the most basic calibration assignment, guaranteeing that laser vitality voyages through the center of all mirrors and the centering focal point. Misalignment causes uneven cutting, diminished control conveyance, and potential harm to optical components. The arrangement prepare includes putting target tape on each reflect surface and terminating low-power test beats whereas altering reflect positions until the bar strikes the center of each component reliably all through the whole travel range.

Focus stature assurance influences cut quality significantly, as the concentrated vitality at the central point conveys greatest cutting control. The central point ought to ordinarily sit at or marginally underneath the fabric surface for cutting applications, whereas etching regularly benefits from raising the center marginally over the surface. Numerous administrators utilize a calibrated gage or perform test cuts at shifting statures to recognize the ideal setting for each fabric thickness and sort.

Material-Specific Cutting Guidelines

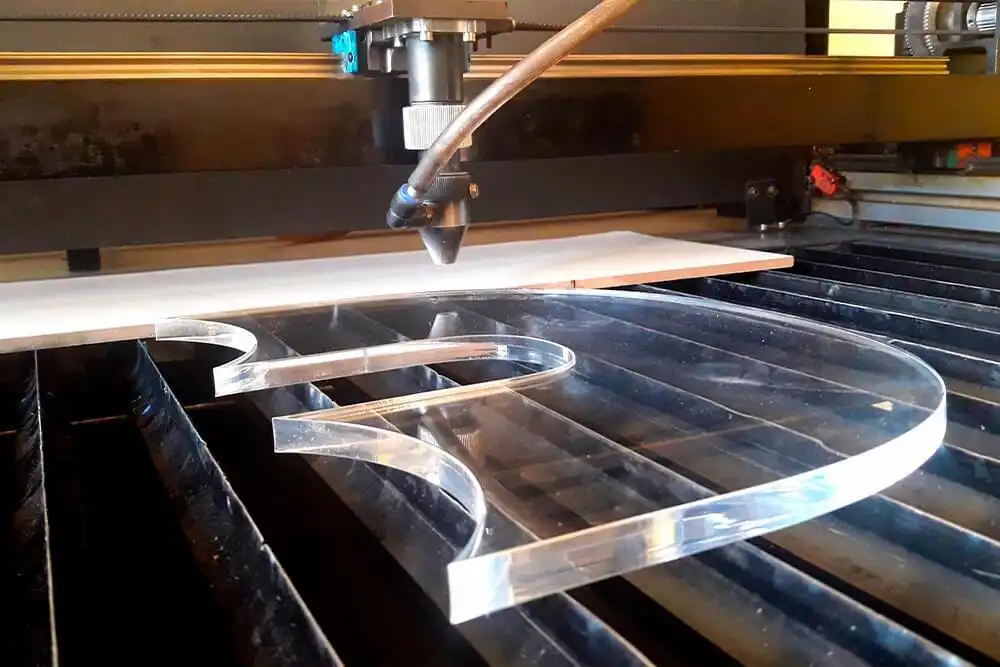

Acrylic cutting requires balanced settings that prevent melting and achieve flame-polished edges. Power settings between sixty and eighty percent of maximum capacity, combined with moderate cutting speeds around ten to twenty millimeters per second, produce excellent results on sheets ranging from three to twelve millimeters thick. Compressed air assist helps remove molten material from the kerf while cooling the cut edge, though excessive pressure can cause rough surfaces on the underside.

Wood cutting presents different challenges due to natural variations in density, moisture content, and resin distribution. Hardwoods generally require higher power levels and slower speeds compared to softwoods, while plywood demands careful parameter selection to avoid excessive charring of the glue layers between veneers. Test cuts on scrap pieces from each batch help identify ideal settings before processing valuable materials or time-sensitive production pieces.

Safety Protocols and Risk Management

Laser security expands past essential defensive eyewear to include comprehensive crisis readiness and danger moderation. The PEDK-9060 consolidates different security sensors that stop operation if the defensive cover opens amid cutting or if coolant stream drops underneath least limits. Administrators ought to familiarize themselves with crisis halt button areas and hone shutdown strategies until they ended up programmed responses.

Ventilation frameworks must capture and channel all smoke and vapor created amid cutting operations. Insufficient extraction permits particulates to settle on optical surfaces, debasing bar quality and requiring visit cleaning cycles. Outside deplete frameworks ought to end outside and incorporate fitting filtration to anticipate natural defilement. Standard channel review and substitution keeps up extraction productivity and secures both hardware and staff from hurtful exposures.

Maintenance and Troubleshooting to Ensure Long-Term Productivity

Sustained production capability depends on implementing structured maintenance schedules that address both routine servicing and component replacement before failures disrupt operations. The laser cutter co2 maintenance program should balance preventive tasks performed by operators with periodic technical service by qualified specialists who possess diagnostic equipment and replacement parts inventory.

Essential Maintenance Checklist

Optical cleaning stands as the most visit support prerequisite, as focal point and reflect defilement straightforwardly impacts cutting execution. Review ought to happen every day in high-volume generation situations, with cleaning performed at whatever point unmistakable stores show up on optical surfaces. Appropriate cleaning strategy includes utilizing lint-free optical tissue soaked with immaculate isopropyl liquor or specialized focal point cleaning arrangement, wiping in a single course from center to edge or maybe than circular movements that can trap particles and cause scratches.

The water cooling framework requires checking of liquid levels, temperature readings, and stream rates. Refined water anticipates mineral stores that decrease cooling effectiveness and possibly harm pump components. Including algaecide represses organic development inside the framework, whereas occasional total liquid substitution expels amassed contaminants. The cooling framework ought to be depleted totally amid expanded shutdown periods in situations where solidifying temperatures might occur.

Linear direct rails and movement orientation require normal grease to keep up smooth development and avoid untimely wear. Application recurrence depends on working hours and natural conditions, with dusty situations requiring more visit consideration. Abundance grease draws in particulates and can exchange to cut materials, so negligible application utilizing manufacturer-specified items accomplishes ideal comes about. Wiping rails clean some time recently applying new grease avoids grating molecule accumulation.

Common Issues and Solutions

Incomplete cuts often result from power loss due to dirty optics, misaligned beam path, or declining laser tube output. Systematic troubleshooting begins with optical inspection and cleaning, followed by beam alignment verification using target paper at multiple points along the beam path. If these steps fail to resolve the issue, tube voltage and current readings help determine whether the power supply or laser tube requires replacement.

Excessive charring or burn marks around cut edges indicate improper parameter selection or inadequate air assist pressure. Reducing power while increasing cutting speed often minimizes thermal damage, as does ensuring that compressed air flows cleanly through the nozzle without obstruction. The focusing lens should be inspected for contamination that might cause hotspots or irregular beam patterns that concentrate heat unevenly around the kerf.

Mechanical issues manifest as positioning errors, skipped steps, or unusual noise during operation. Belt tension verification prevents slippage that causes repeated patterns to misalign, while checking set screws on pulleys and motor shafts eliminates another common failure point. The DSP offline control system in the PEDK-9060 maintains motion parameters independently of the connected computer, reducing the likelihood of communication errors disrupting precise cutting operations.

Choosing the Best CO2 Laser Cutter for Your Business Needs

Equipment selection impacts production capabilities and operational costs for years following the initial investment. Procurement decisions should balance immediate application requirements with anticipated growth in production volume, material variety, and design complexity. Understanding the technical specifications, build quality indicators, and supplier support capabilities helps identify systems that deliver reliable performance throughout their service life.

Technology Comparison and Application Fit

Diode laser modules offer lower initial costs and compact form factors but deliver significantly less power than CO2 systems, typically maxing out around fifteen to twenty watts. This power limitation restricts diode lasers to thin materials and engraving applications, making them suitable for hobbyist use or light-duty production but inadequate for industrial manufacturing environments. The wavelength difference also affects material compatibility, with diodes struggling on transparent materials that CO2 lasers process easily.

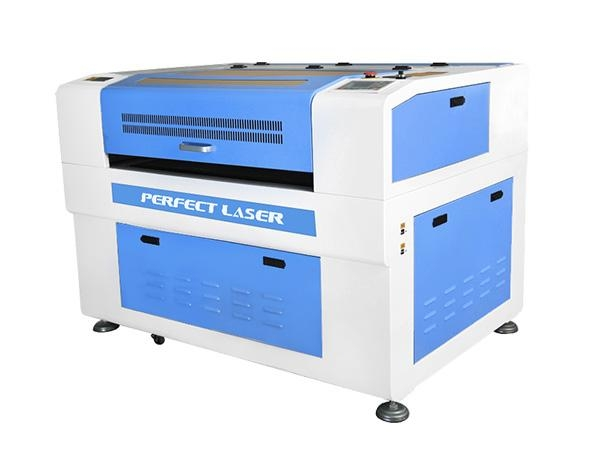

Working area dimensions directly impact the size of parts that can be processed in a single setup. The PEDK-9060 provides a ninety by sixty centimeter cutting envelope suitable for most signage, packaging prototypes, and component fabrication tasks. CO2 laser cutter accommodate architectural models and furniture components but occupy more floor space and typically command higher purchase prices. Evaluating actual production requirements rather than maximum theoretical capabilities prevents overinvestment in unused capacity.

Evaluating Supplier Credentials and Support

After-sales service availability significantly influences total cost of ownership and operational uptime. Suppliers should provide comprehensive technical documentation, training materials, and responsive support channels that address questions and issues promptly. Perfect Laser's twenty-four-hour online service ensures that operators can access guidance when troubleshooting urgent production problems, minimizing downtime costs that often exceed the value of repair parts.

Installation and commissioning services by factory-trained technicians accelerate the transition from equipment delivery to productive operation. Professional installation ensures proper utility connections, verifies calibration accuracy, and provides hands-on operator training that builds confidence and competence. The two-year warranty coverage on the PEDK-9060 demonstrates manufacturer confidence in product reliability while protecting buyers from unexpected repair expenses during the initial ownership period.

Component quality varies significantly across suppliers and affects both performance and longevity. American-manufactured focusing lenses deliver superior optical quality and durability compared to generic alternatives, while Japanese servo motors provide smoother motion control and higher reliability than budget stepper motors. The PEDK-9060 offers configuration flexibility that allows buyers to select components matching their performance requirements and budget constraints without compromising critical functions.

Advanced Tips to Optimize Your CO2 Laser Cutting Operations

Achieving maximum productivity requires moving beyond basic operation to implement workflow refinements and process optimizations. Production efficiency improvements often come from systematic testing and documentation of optimal parameters rather than dramatic equipment modifications. Building a knowledge base of proven settings for frequently processed materials reduces setup time and improves consistency across production runs.

Speed and Power Optimization Strategies

The connection between cutting speed and laser power is a curve, therefore doubling power does not double speed while retaining cut quality. Finding the best balance entails testing different combinations, documenting findings, and finding settings that maximise throughput without problems. Higher speeds reduce heat-affected zones in thin materials, whereas slower speeds enable full penetration in larger materials.Multiple pass cutting expands the thickness range of lower-power devices but requires alignment and processing time. After removing a part of the material depth, successive passes follow the same route until full penetration. Distributed heat input reduces damage while attaining the required result, making this approach ideal for materials that burn or melt easily with single-pass cutting.

Software Integration and Design Workflow

In sophisticated cutting procedures, CAD/CAM software greatly impacts productivity. PEDK-9060 supports DXF, DWG, and vector graphics formats, allowing designers to work in their chosen programs and upload data to the laser controller. Nesting algorithms optimise component placement on material sheets, decreasing waste and unit cost.Advanced software capabilities like kerf correction alter cutting paths to account for laser beam width material removal, ensuring completed components match design dimensions. Image tracing translates bitmap visuals into vector cutting patterns for automatic picture and artwork replication. Layer management simplifies setup for repeating production processes by combining cutting, power, and sequencing instructions in one file.In manufacturing, the LCD touch screen interface controls cutting settings intuitively without a computer. Operators may load designs from USB devices, alter parameters for material variances, and monitor work progress at the machine. The offline feature boosts production schedule flexibility and decreases risks of computer breakdowns or network connection difficulties disturbing operations.

Conclusion

Understand basic operating concepts, follow correct setup and maintenance procedures, and continually test and optimise operations to master CO2 laser cutting technology with a co2 laser cutter. Systems like the PEDK-9060 may be used for precision electronics production and architectural model creation if operators match equipment capabilities with material and application requirements. Procurement success requires comparing technical requirements to production demands and considering supplier support and long-term service availability. Quality equipment from Perfect Laser, thorough operator training, and disciplined maintenance practices enable reliable production that supports business growth and competitive advantage in demanding manufacturing environments.

FAQ

1. Which materials can I safely cut with a CO2 laser system?

CO2 laser technology processes wood, acrylic, leather, fabric, paper, and many plastics effectively. Avoid materials containing chlorine such as PVC, which generate corrosive gases that damage equipment. Metals reflect infrared wavelengths and require fiber laser systems, while glass cutting causes thermal stress fractures making it unsuitable for CO2 processing.

2. How often should I perform maintenance on laser cutting equipment?

Daily inspection of optical cleanliness and coolant levels prevents most operational issues. Weekly lubrication of motion components and monthly comprehensive system checks maintain optimal performance. Professional servicing annually by qualified technicians addresses wear items and verifies calibration accuracy, extending equipment lifespan significantly.

3. What distinguishes CO2 laser cutters from fiber laser systems?

For non-metals, CO2 systems work best, whereas fibre lasers are best for metal manufacturing. CO2 technology cuts organic materials and acrylic with exceptional edge quality, whereas fibre lasers cut reflective metals faster and cheaper for metalworking applications.

Transform Your Production Capabilities with Professional CO2 Laser Solutions

Perfect Laser stands as a leading CO2 laser cutter manufacturer with nearly three decades of engineering excellence and worldwide deployment experience. Our PEDK-9060 model incorporates precision Hiwin guide rails, advanced thermal management through CW-3000 chiller systems, and flexible configuration options including American focusing optics and Japanese servo motors that match your specific production requirements. The integrated DSP offline control system supports comprehensive file format compatibility while the honeycomb platform ensures flawless cutting accuracy down to one-millimeter letter engraving. Our technical team provides complimentary application consultation, sample processing verification, and comprehensive training that accelerates your transition to productive operation. Contact our specialists at [email protected] to discuss your manufacturing objectives and discover how our certified CO2 laser cutting machines deliver the reliability, precision, and support that demanding industrial applications require for sustained competitive advantage.

References

1. Steen, W.M. and Mazumder, J. (2010). Laser Material Processing, Fourth Edition. Springer-Verlag London Limited.

2. Ready, J.F. and Farson, D.F. (2001). LIA Handbook of Laser Materials Processing. Laser Institute of America, Magnolia Publishing.

3. Powell, J. (1998). CO2 Laser Cutting, Second Edition. Springer-Verlag London.

4. Ion, J.C. (2005). Laser Processing of Engineering Materials: Principles, Procedure and Industrial Application. Elsevier Butterworth-Heinemann.

5. Chryssolouris, G. (1991). Laser Machining: Theory and Practice. Mechanical Engineering Series, Springer-Verlag New York.

6. Dahotre, N.B. and Harimkar, S.P. (2008). Laser Fabrication and Machining of Materials. Springer Science and Business Media.
